Product Information

Model: PS01

Material: Aluminum Alloy + PC

Interface: Type-C (USB 2.0 support)

Product Dimensions: 50mm x 19mm x 8mm

Weight: 15g

Power: USB DC5V 1A (Max)

Packing list

PlugOS Smart Terminal * 1

U-Type Type-C Data Cable * 1

User Manual * 1

Protective Case * 1

Product Key Card * 1

Warranty Card * 1

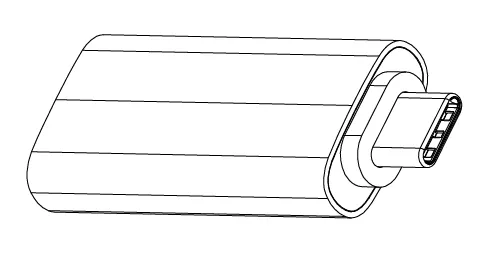

Indicator status

Indicator light

Type-C interface

Lamp status comparison table

Status	Meaning Description
Off	Device is powered off; no connection to host device.
Red Light (Solid)	System is booting; will switch to blue when successful. If the red light stays on for over 180 seconds, the boot is abnormal.
Blue Light (Solid)	System running normally.
Blue Light (Blinking)	System booted, awaiting password or device input.
Purple Light (Solid)	Device is in factory reset mode.
Red Light (Blinking)	Device is in self-destruct mode and no longer functional.

Device connection mode

1. Plug-and-play, powered via OTG from the host device (5V/1.0A), supports USB 2.0 at 480Mbps.

2. Compatible with iPhone 15 and other standard Type-C protocol devices.

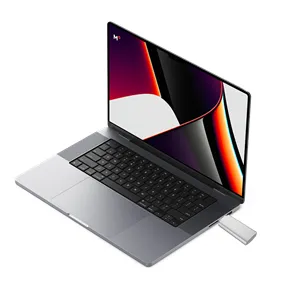

(Connection mode between device and host)
